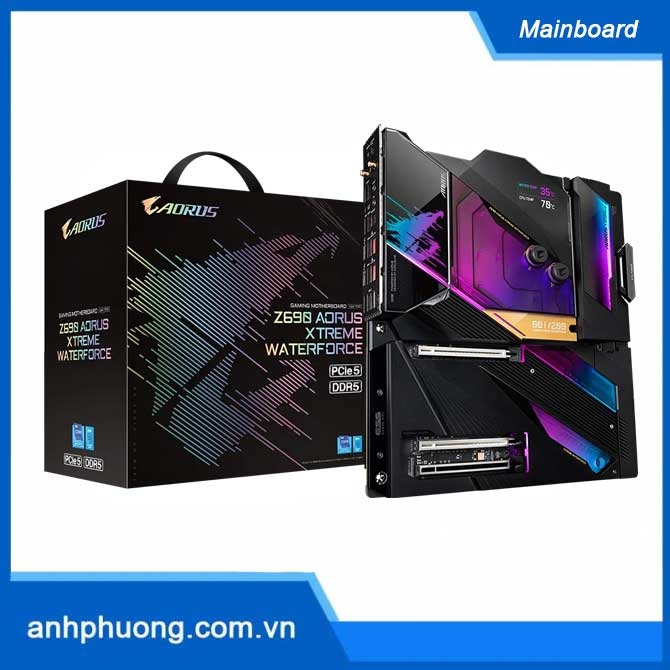

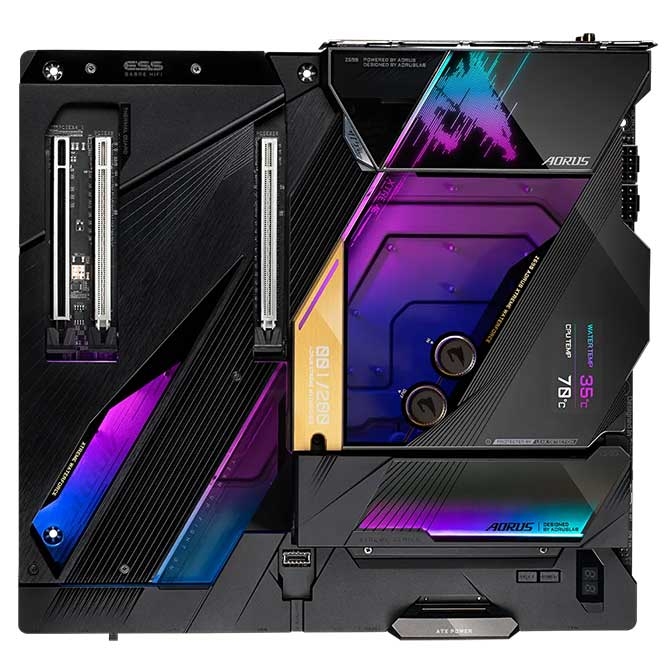

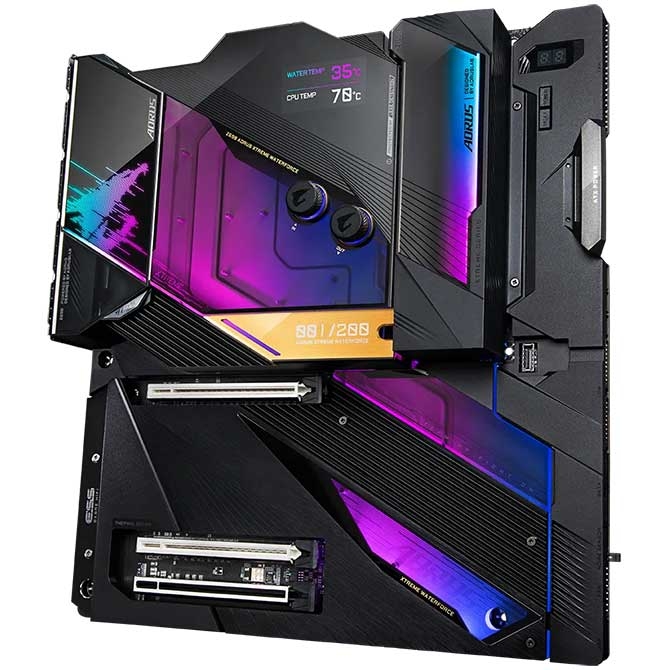

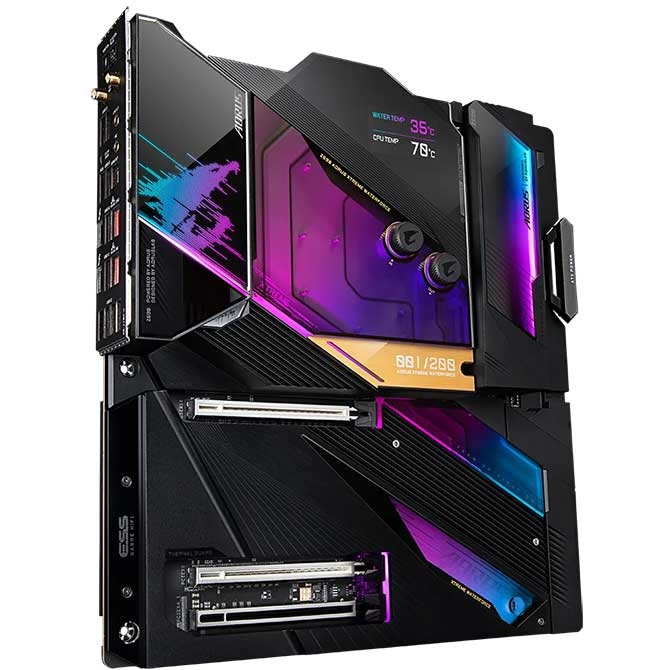

Mainboard Gigabyte Z690 AORUS XTREME WB

  • Chưa có đánh giá nào
  • 2063 lượt xem
  • Mã sản phẩm : Z690 AORUS XTREME WB
  • Thương hiệu : GIGABYTE
  • 58.500.000₫ [Đã bao gồm VAT]
  • Số lượng
  • Liên hệ
Mua ngay Thêm vào giỏ hàng
  • Support 12th Gen Intel® Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 20+1+2 Phases Direct VRM Design with 105A Power Stage* and Tantalum Polymer Capacitor
  • DDR5 XTREME MEMORY Design with SMD DIMM and Shielded Memory Routing
  • Thermal Reactive Armor with All in One Monoblock and NanoCarbon Baseplate
  • Intel® Thunderbolt 4 onboard
  • Onboard Intel® WIFI 6E 802.11ax 2T2R & BT5 with 2X AORUS Antenna
  • Essential USB Hex Audio Card and bundled Essential USB DAC
  • AQUANTIA® 10GbE BASE-T LAN and Intel® 2.5GbE LAN with cFosSpeed
  • 4 x Ultra-Fast NVMe PCIe 4.0 /3.0 x4 M.2 with Thermal Guards
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP and Noise Detection
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Download Driver: download driver

  • Cam kết hàng chính hãng
  • Cam kết hàng nguyên tem, nguyên kiện, mới 100%
  • Bảo hành theo tiêu chuẩn NSX
  • Giao hàng toàn quốc
  • Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí:  093.855.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

CPU LGA1700 socket: Support for 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
Chipset Intel® Z690 Express Chipset
Memory Support for DDR5 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Graphic 2 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp (via single display output)
* Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-7, "Back Panel Connectors," for more information.)
* Support for DisplayPort 1.4 version and HDCP 2.3
Multi Graphic Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x8 (PCIEX8)
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
(The PCIEX16 and PCIEX8 slots conform to PCI Express 5.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4_1)
(The PCIEX4_1 slot conforms to PCI Express 3.0 standard.)
Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
Lan Marvell® AQtion AQC113C 10GbE LAN chip
(10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
Wireless Data Network Intel® Wi-Fi 6E AX210
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
* Actual data rate may vary depending on environment and equipment.
Audio 1 ESS ES9280AC DAC chip + 2 ESS ES9080 chips
DTS® Sound Unbound™
High Definition Audio
2-channel
Support for S/PDIF Out
* The line out jack and the optical S/PDIF out connector can only be used one at a time.
USB Port Chipset+Intel® Thunderbolt™ 4 Controller:
2 x USB Type-C® ports on the back panel, with USB 3.2 Gen 2 support

Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 2 Hub:
4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports available through the internal USB headers

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports available through the internal USB header (with the included front USB header extension cable)
Operating System Support Support for Windows 11 64-bit
Support for Windows 10 64-bit

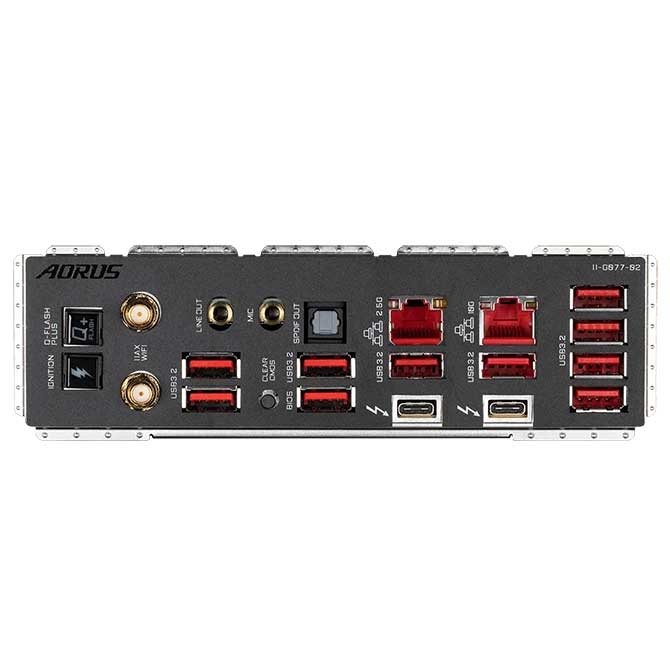

Back I/O Ports 1 x Q-Flash Plus button
1 x OC Ignition button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)
10 x USB 3.2 Gen 2 Type-A ports (red)
2 x RJ-45 ports
1 x optical S/PDIF Out connector
2 x audio jacks
* The mic in jack supports only mono microphone input.
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
1 x water cooling kit CPU LED header (LED_CPU)
1 x AORUS RGB Memory Armor power header (LED_DDR)
4 x system fan headers
4 x system fan/water cooling pump headers
1 x noise detection header
2 x integrated extension cable headers for addressable and RGB LED strips
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
1 x USB 2.0/1.1 header
2 x temperature sensor headers
1 x power button
1 x reset button
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor E-ATX Form Factor; 30.5cm x 28.5cm
