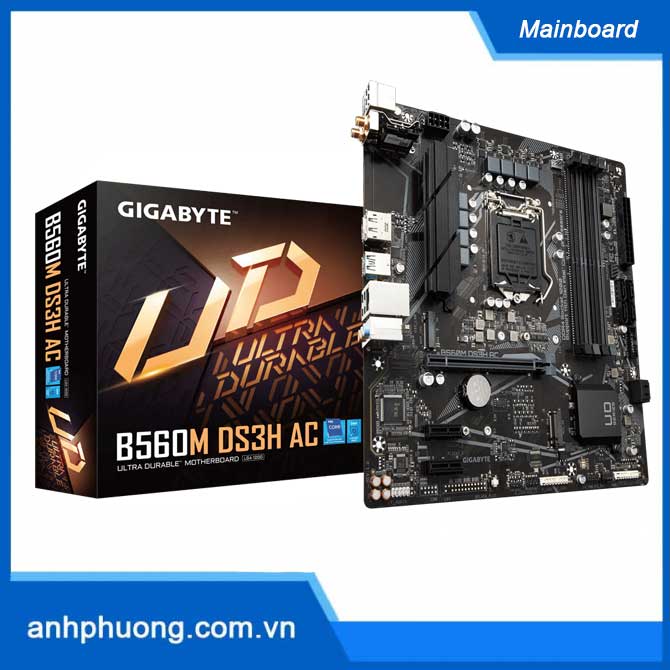

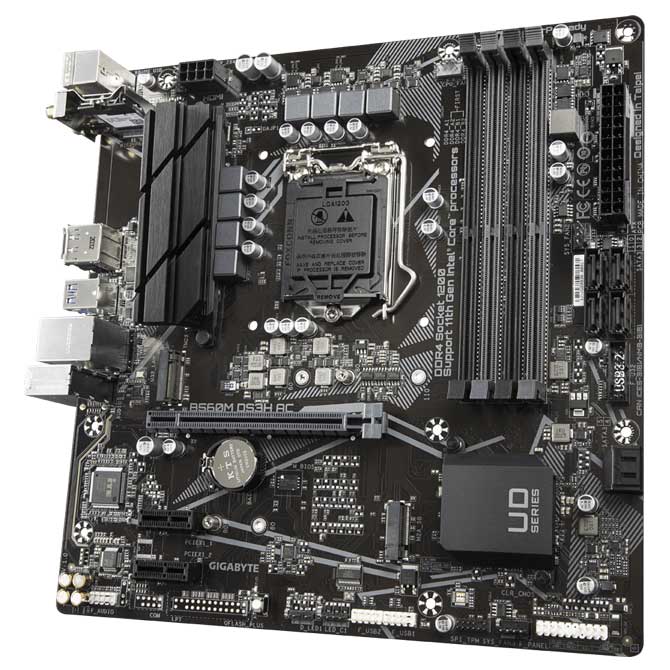

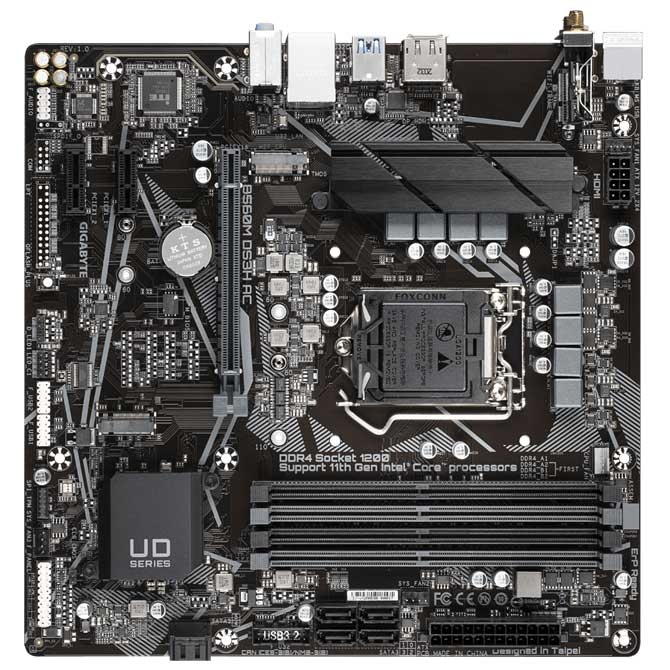

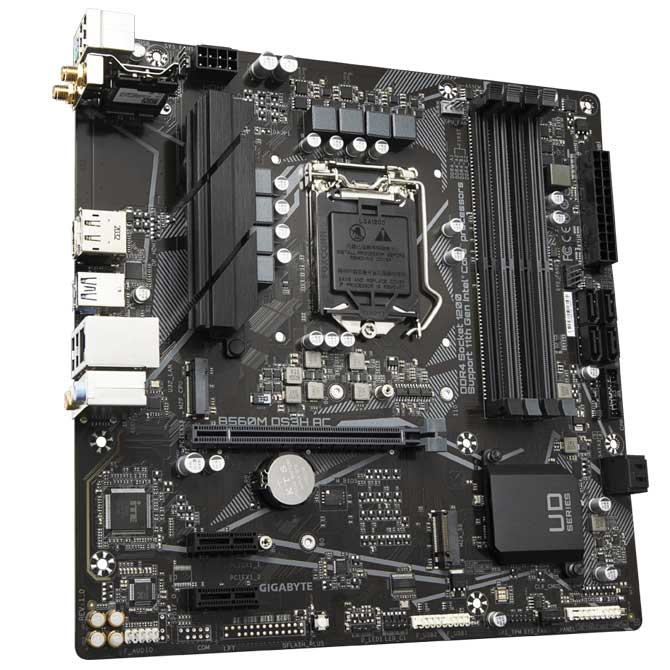

Mainboard Gigabyte B560M DS3H AC

Chưa có đánh giá nào
1676 lượt xem

Mã sản phẩm : B560M DS3H AC
Thương hiệu : GIGABYTE

3.150.000^₫ [Đã bao gồm VAT]

Số lượng
Liên hệ

Mua ngay Thêm vào giỏ hàng

Supports 11th and 10th Gen Intel® Core™ Series Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
Dual Ultra-Fast NVMe PCIe 4.0/3.0* x4 M.2
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
Onboard Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
USB 3.2 Gen1 Type-C® for Fast and Versatile Connections
High Quality Audio Capacitors and Audio Noise Guard
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Download Driver:

Cam kết hàng chính hãng
Cam kết hàng nguyên tem, nguyên kiện, mới 100%
Bảo hành theo tiêu chuẩn NSX
Giao hàng toàn quốc
Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí: 093.855.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

CPU	11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors* * Limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family. L3 cache varies with CPU
Chipset	Intel® B560 Express Chipset
Memory	11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors: Support for DDR4 2666/2400/2133 MHz memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphic	1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. (Graphics specifications may vary depending on CPU support.)
Expansion Slots	1 x PCI Express x16 slot, running at x16 (The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note) 2 x PCI Express x1 slots (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_CPU) (Note) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/ x2 SSD support) (M2A_SB) 6 x SATA 6Gb/s connectors * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready * System acceleration with Intel® Optane™ Memory can only be enabled on the M2P_CPU connector and with an 11th Generation Intel® processor installed.
Lan	Realtek® GbE LAN chip (1000/100 Mbit)
Wireless Data Network	AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate * Actual data rate may vary depending on environment and equipment.
Audio	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
USB Port	Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports on the back panel
Operating System Support	Support for Windows 10 64-bit

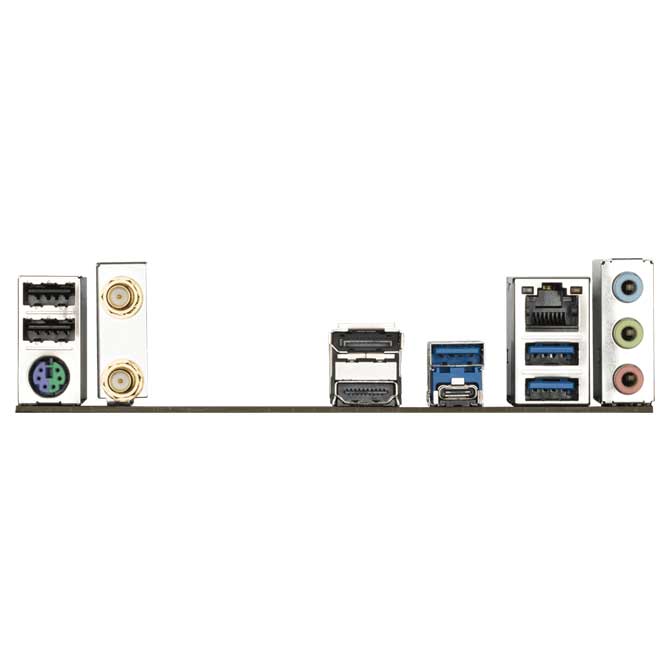

Back I/O Ports	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (1T1R) 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port, with USB 3.2 Gen 1 support 1 x RJ-45 port 3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 6 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper 1 x Q-Flash Plus button
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
