Switch D-Link 8-Port 10/100Mbps DES-1008PA

Chưa có đánh giá nào
3311 lượt xem

Mã sản phẩm : DES-1008PA
Thương hiệu : D-LINK

Liên hệ

Số lượng
Liên hệ

Mua ngay Thêm vào giỏ hàng

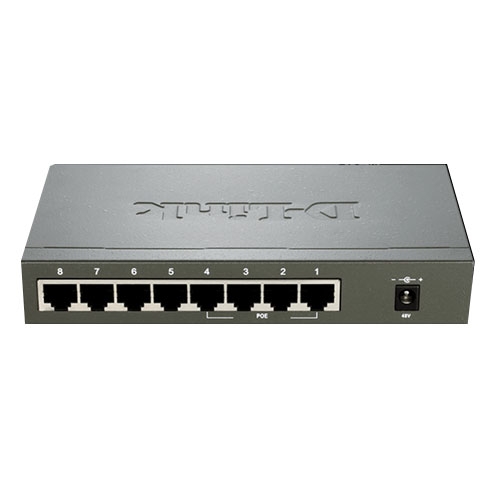

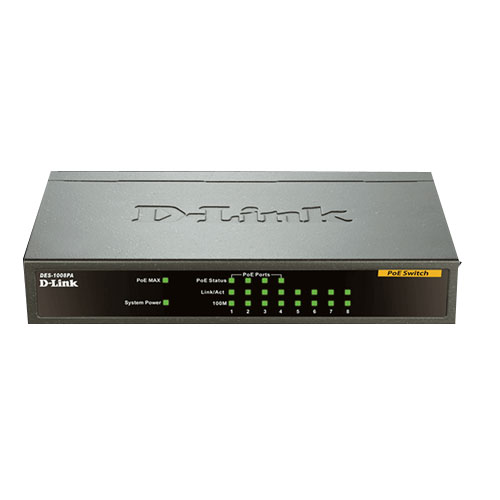

8-Port Fast Ethernet PoE Unmanaged Desktop Switch

DES-1008PA

The D-Link DES-1008PA 8-Port Fast Ethernet PoE Desktop Switch enables both home and office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates silently, making it ideal for use in virtually any room or office.

Cam kết hàng chính hãng
Cam kết hàng nguyên tem, nguyên kiện, mới 100%
Bảo hành theo tiêu chuẩn NSX
Giao hàng toàn quốc
Bảo hành nhanh chóng

HOTLINE & ZALO TƯ VẤN:

Mr. Minh Trí: 093.855.3309

Ms. Mai Duyên: 093.143.9459

Ms.Hồng Trinh: 093.207.0746

Mr. Thành Tâm: 093.891.0559

Mr.Văn Sang: 090.397.1091

Mr. Thanh Tùng: 093.909.8182

Thông số kỹ thuật

SWITCH DLINK
SWITCHING FABRIC	• 1.6 Gbps switching fabric
Standard	• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x flow control • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
Data Transfer Rates	• Ethernet • 10 Mbps (half duplex) • 20 Mbps (full duplex) • Fast Ethernet • 100 Mbps (half duplex) • 200 Mbps (full duplex)
Network Cables	• 10BASE-T: • UTP CAT 3/4/5/5e (100 m max.) • EIA/TIA-586 100-ohm STP (100 m max.) • 100BASE-TX • UTP CAT 5/5e (100 m max.) • EIA/TIA-568 100-ohm STP (100 m max.)
Media Interface Exchange	Auto MDI/MDIX adjustment for all ports
LED Indicators	• Per unit: Power/ PoE Max • Per port: Activity/ Link and Speed • Per port: Power / Status
Transmission Method	• Store-and-forward
MAC Address Table	• 1K entries per device
Packet Filtering/Forwarding Rates (half duplex)	• Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port
RAM Buffer	• 96 KB per device
Power Consumption	• 63 Watts maximum • PoE up to 15.4 Watts per port (ports 1-4 only)
DIMENSIONS (L X W X H)	• 6.8” x 3.9” x 1.1” (172mm x 98mm x 27.9mm)

Mô tả sản phẩm

Get more out of your SOHO and SMB network

The DES-1008PA 8-Port switch can convey power to up to four network devices through standard network cables using Power over Ethernet technology. And as a switch, the DES-1008PA can be used to share files, music and video across your network or create a multi-player gaming environment. The device runs ultra-quiet, making it ideal for both home and small office use.

Power up to 4 Network Devices with PoE

The D-Link 8-Port Desktop Switch with 4 PoE Ports (DES-1008PA) enables both home and office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (AP), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates quietly, making it ideal for use in virtually any room or office.

IEEE 802.3af Power over Ethernet (PoE)

The DES-1008PA features four 10/100BASE-TX ports that support the IEEE 802.3af PoE protocol. Each of the these PoE ports can supply up to 15.4 W for a total PoE budget of 56 W, allowing users to attach an IEEE 802.3af-compliant device to the DES-1008PA without requiring additional power. This eliminates the need of having to place networking devices within close proximity of a power outlet and minimizes cable clutter in awkward places such as ceilings or walls.

Quick and Easy Setup

No configuration is required and installation is quick and easy. Support for auto-MDI/MDI-X on all ports eliminates the need for crossover cables for connection to another switch or hub. Auto-negotiation on each port senses the link speed of a network device (either 10 Mbps or 100 Mbps) and intelligently adjusts for compatibility and optimal performance. When an IEEE 802.3af-compliant device is attached, power supplied to that device will be automatically adjusted to fit the device. The DES-1008PA also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network.
