| SWITCH DLINK | |
|---|---|
| Key Features | • Auto MDI/MDIX crossover for all ports • Secure store-and-forward switching scheme • Full/half-duplex for Ethernet/Fast Ethernet speeds • Supports 9,216 byte jumbo frames • Back pressure at half-duplex operation • Wire-speed reception and transmission • Store and-Forward switching method • Auto-negotiation for each port • QoS (8 queues, strict mode) |
| NUMBER OF PORTS | • 24 10/100/1000 Mbps LAN ports |
| SWITCHING FABRIC | • 48 Gbps switching fabric |
| Standard | • IEEE 802.3 10BASE-T • IEEE 802.3u 100BASE-TX • IEEE 802.3ab 1000BASE-T • IEEE 802.3x Flow Control • IEEE 802.1p QoS • IEEE 802.3az Energy-Efficient Ethernet (EEE) |
| Data Transfer Rates | • Ethernet: • 10 Mbps (half duplex) • 20 Mbps (full duplex) • Fast Ethernet: • 100 Mbps (half duplex) • 200 Mbps (full duplex) • Gigabit Ethernet • 2000 Mbps (full duplex) |
| Media Interface Exchange | • Auto MDI/MDIX adjustment for all ports |
| LED Indicators | • Per port: Link/Activity/Speed • Per device: Power |
| Transmission Method | • Store-and-forward |
| MAC Address Table | • 16,000 |
| Packet Filtering/Forwarding Rates (half duplex) | • Ethernet: 14,880 pps per port • Fast Ethernet: 148,800 pps per port • Gigabit Ethernet: 1,488,000 pps per port |
| RAM Buffer | • 512 KB per device |
| Power Consumption | • Power On (Standby): 6.5 watts • Maximum: 13.5 watts |
| Heat Dissipation | • 46.04 BTU/h |
| MTBF | • 247,291 hours |
| DIMENSIONS (L X W X H) | • 282.2 x 178.0 x 44.5 mm (11.11 x 7.01 x 1.75 inches) |
| Weight | • 1.14 kg (2.51 lbs) |
Thông số kỹ thuật
Mô tả sản phẩm
Fast Connectivity meets Energy Efficiency

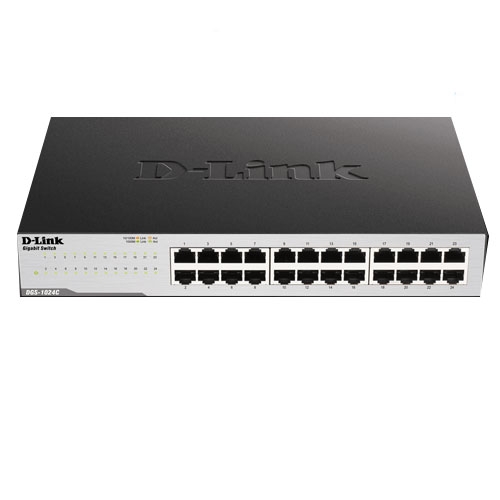

The DGS-1024C lets you enjoy fast wired connectivity with 24 Gigabit LAN ports, and easy Plug-and-play installation. It even reduces power to a port when there is no traffic, and optimizes power usage for a port for the length of cable connected to it, giving you more energy efficiency in your SOHO or SMB network.
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for quick file transfers, online gaming and smooth streaming media. They feature easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status.
Conserve Energy
The DGS-1024C supports IEEE 802.3az Energy-Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. The switches can detect when a connected computer is shut down or when there is no Ethernet traffic and can automatically reduce the power used for that port, cutting power usage substantially.
Reliable Plug and Play Installation
The DGS-1024C is a plug-and-play device that requires no configuration, so setup is simple and hassle-free, and you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment.
Smooth Streaming
These switches support QoS, which prioritizes network traffic so that time sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls.
